Eurochain Vario Electric Chain Hoist – Variable Speed Lifting (VR5 / VR12)

The Eurochain VR Vario electric chain hoist offers enhanced productivity through continuous speed control which features soft start, rapid acceleration and soft stop, to optimise load-handling operations. The extended speed range (ESR) system allows the hoist to run at faster speeds with lighter or no loads to increase productivity.

Electric braking reduces brake wear since the mechanical brake is used only as holding brake (parking brake).

  • Electric braking reduces brake wear
  • Reduced mechanical impacts and extended lifetime
  • Optimised load handling operations
  • Rapid accelerations and soft start/stop
Make an Enquiry

Technical Information

The Eurochain VR Vario electric chain hoist is designed to provide users with the maximum level of safety. It is delivered with the following equipment as standard:

  • Stepless hoisting speed through inverter control
  • Adjustable acceleration/deceleration ramp time
  • Hoist control modes to allow single/dual/variable speed operation
  • Brake monitoring
  • Overspeed monitoring
  • Clutch slippage monitoring
  • Electronic overload protection through load sensor
  • For loads of 63kg – 10,000kg
  • Shock load control in variable speed mode
  • Hour counter, start counter, Safe Working Period (SWP) calculation
  • Load wheel chain flux system
  • Power supply 380V - 480V/3Ph/50Hz 60 Hz
  • Low voltage control 48V (115V or 230V as option)
  • Variable travelling speed on electric powered trolley

Documents

Download Verlinde Eurochain Vario commercial and technical documents:

Configurations

Eurochain Vario Electric Chain Hoist with Hook Suspension
Hook Suspension

The Vario electric chain hoist with hook suspension where horizontal movement is not required.

Push Trolley

If horizontal movement is required the Vario electric chain hoist with push travel trolley can be used.

Electric Trolley

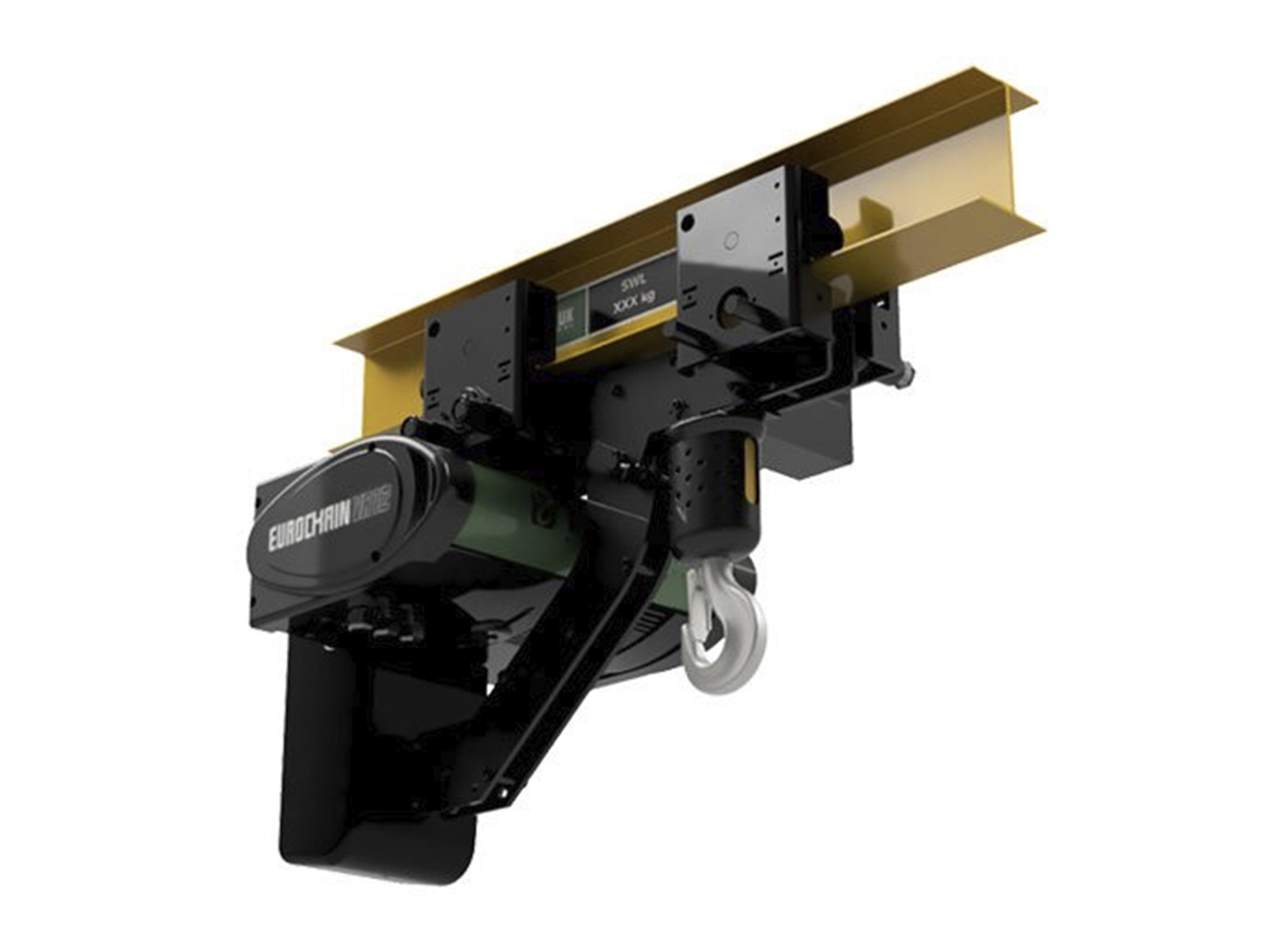

The Eurochain Vario electric chain hoist fitted to a variable speed travel trolley.

Geared Travel Trolley

For bigger loads a geared travel trolley can be used with the Vario electric cain hoist to provide horizontal movement.

Make an Enquiry

WHEN DOES YOUR HOIST NEED A GENERAL OVERHAUL OR TO BE REPLACED?

Hoists, whether they are electric chain hoists, manual chain hoists, electric wire rope hoists or electric belt hoists are all manufactured with 10 years of serviceable life before a major overhaul or replacement is required. The ten year service life may not necessarily be a physical ten years of operation, but may be used up more quickly or slowly based on how the machine is being operated during its working life.

In order to help evaluate the working life of a hoist you need to be able to calculate how much of the original manufacturers Safe Working Period exists after your lifting operations have occurred.

READ MORE
